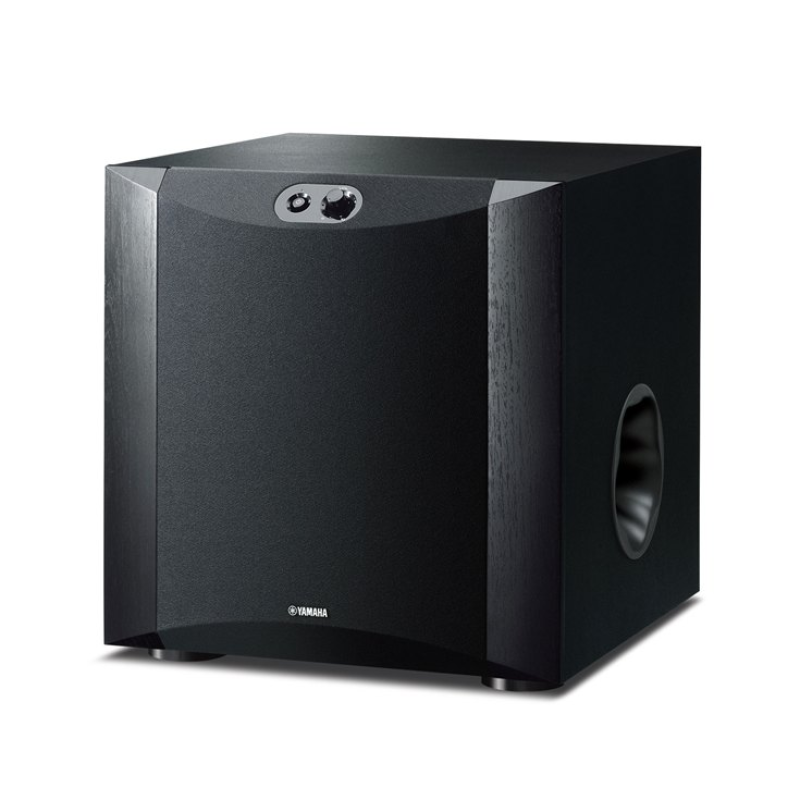

A design combining superior operability and beauty. And introducing a new technology, Twisted Flare Port, for clear and tight bass.
A subwoofer that will match a wide range of speakers and interiors.
- PWM digital drive high efficiency amplifier and dual feedback circuit
- New Twisted Flare Port contributes to clear and tight bass
- Advanced YST II (Yamaha Active Servo Technology II)
- 25 cm (10?) cone woofer with square wire voice coil
- Beautiful design will match a wide range of speakers and interiors
- Front control panel for easy control
- System control and Auto standby
NEW TWISTED FLARE PORT PRODUCES CLEAR AND TIGHT BASS
The all-new Twisted Flare Port takes advantage of extensive subwoofer development experience.
The flared, gently twisting shape diffuses the vortex of air generated around the edge of the port, creating a smoothflow of air.
This reduces extraneous noise not present in the originalinput signal and provides clear, accurate low frequency reproduction.
From special effect sounds in movies to the atmosphere ofa live venue, you hear bass that is clear, tight and realistic
PWM DIGITAL DRIVE HIGH EFFICIENCY AMPLIFIER AND DUAL FEEDBACK CIRCUIT
The built-in power amplifier delivers stable power output of 250 W with high efficiency while minimizing power consumption and heat production.
It does not require an output filter coil, resulting inextremely low noise and distortion.
High speed transient response is also excellent.
The dual feedback circuit reduces distortion by applying feedback twice, resulting in higher sound clarity.
ADVANCED YST II FOR AWESOME DEEP BASS
DEVELOPED BY YAMAHA, THE ADVANCED YST II (YAMAHA ACTIVE SERVO TECHNOLOGY II) COMBINES NEGATIVE-IMPEDANCE AND CONSTANT-CURRENT PRINCIPLES TO DRIVE THE SPEAKER CONE WITH EVEN TIGHTER CONTROL THAN THE PREVIOUS VERSION.
USING ADVANCED NEGATIVE IMPEDANCE CONVERTER (ANIC) CIRCUITS, THIS SYSTEM DYNAMICALLY OPTIMIZES EFFECTIVE SPEAKER IMPEDANCE TO MAINTAIN EXCELLENT LINEARITY.
THIS MEANS MORE STABLE AND ACCURATE LOW RANGE RESPONSE, NOT TO MENTION HIGHER SOUND QUALITY.
25 CM (10?) CONE WOOFER UNIT WITH SQUARE WIRE
A 25 cm (10?) large woofer unit is used in a front-firing configuration.
The voice coil of the driver unit employs square wire with a wide surface area that can be wound more densely to obtain higher magnetic flux density.
It delivers high drive force, permitting tight and deep bass reproduction
BEAUTIFUL DESIGN THAT WILL MATCH A WIDE RANGE OF SPEAKERS AND INTERIORS
In addition to the beautifully round shape of the front surface, panels on both sides to create an accent, anda neat appearance, this subwoofer lets you imagine the strength of sound and matches a wide range of speaker systems.
Numerous color variations are provided, so you can select one matched to your interior.
FRONT CONTROL PANEL FOR EASY OPERATION
The power and volume buttons, which are used most often, are laid out on the front surface of the unit for ease of access.
It is inclined at an angle of 45?, making it easy to use even when placed on the floor.
An LED indicator is above the power button, so even in a dimly lit room it’s easy to tell if it’s on or off
SYSTEM CONTROL AND AUTO STANDBY
The system control terminal can be linked to the amplifier power to automatically turn the power on and off.
There is also an Auto Standby Function: If no signal isinput from the amplifier for a fixed period, it automatically switches to the standby state, and when a signal from the amplifier is detected, power turns on automatically.
This limits the wasteful consumption of electricity.
SPECIFICATIONS
| NS-SW300 | ||
|---|---|---|
| Driver | 25 cm (10?) cone | |
| Output Power | 250 W | |
| Frequency Response | 20?160 Hz | |
| Advanced YST | Yes | |
| High-Efficiency Power Amplifier | Yes | |
| Twisted Flare Port | Yes | |
| BASS (Bass Action SelectorSystem) | Yes | |
| Auto Standby | Yes | |
| Standby Power Consumption | 0.3 W | |
| System Connector | Yes | |
| Dimensions (W x H x D) | 350 x 366 x 420 mm; 13-3/4? x 14-3/8? x 16-1/2? | |
| Weight | 18 kg; 39.7 lbs. | |
